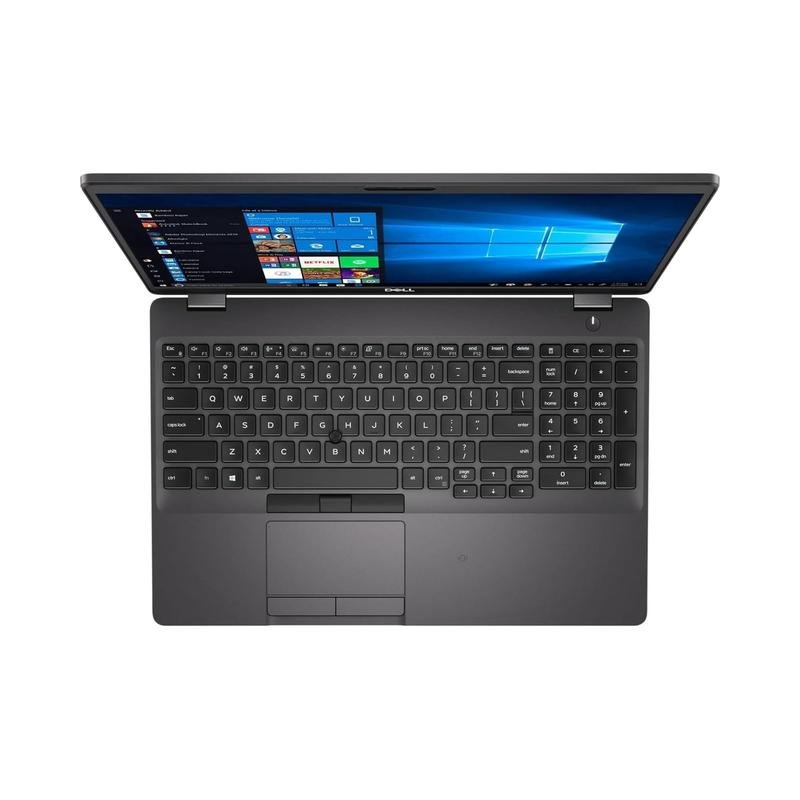

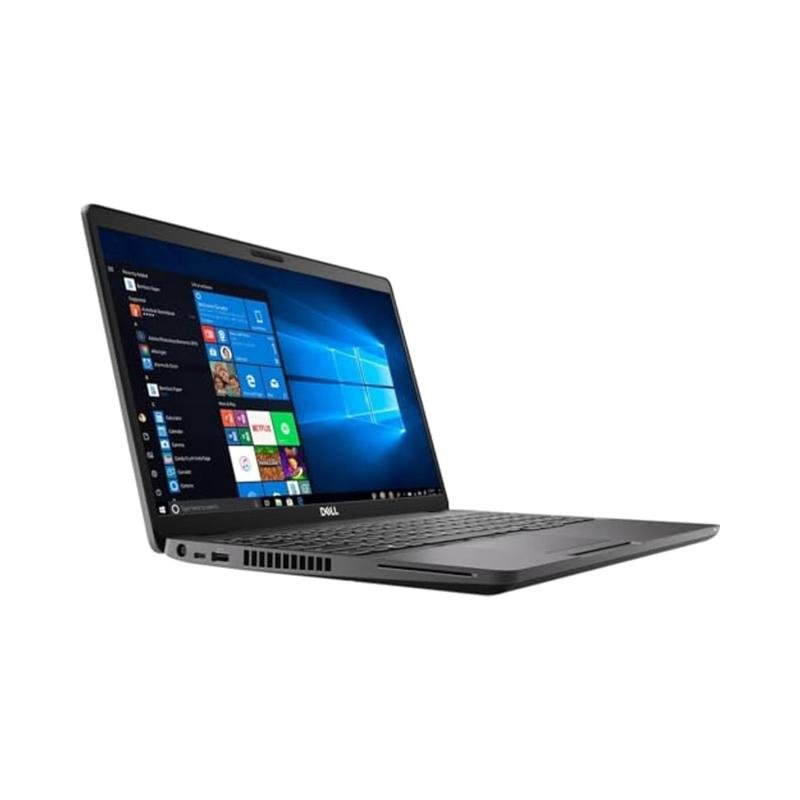

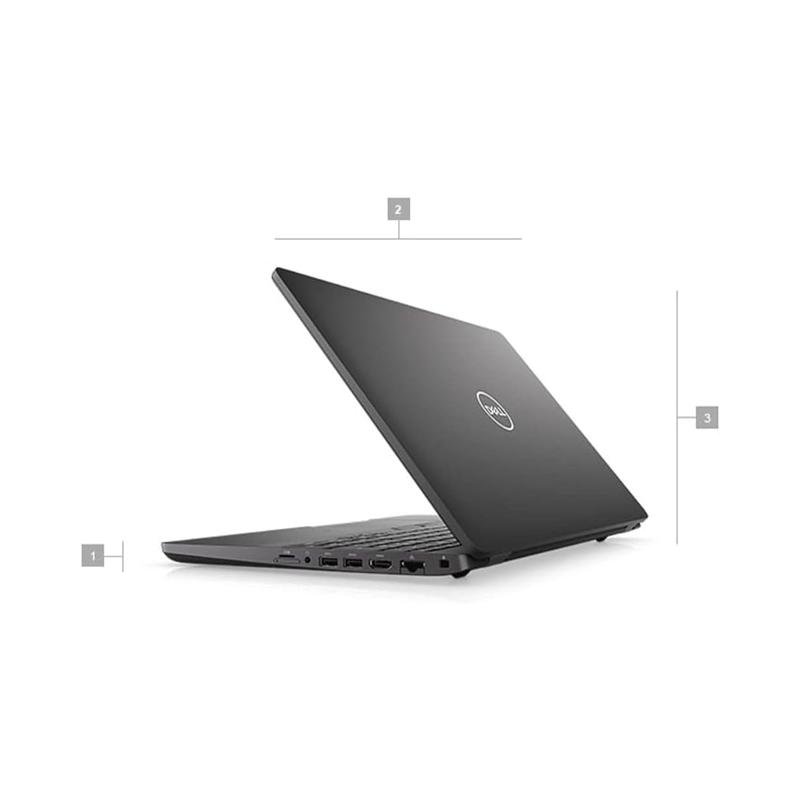

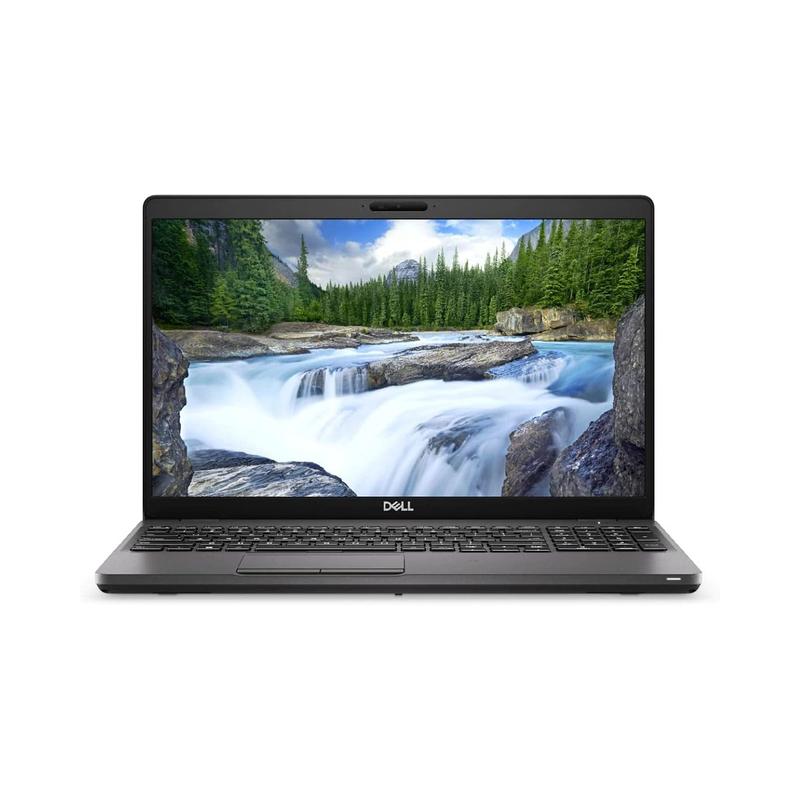

Dell Latitude 5500 Laptop 15.6 – Intel Core i5 8th Gen – i5-8265U – Quad Core 3.9Ghz – 256GB SSD – 16GB RAM – 1920×1080 FHD (Certified Pre-Owned)

Certified Pre-Owned: Vetted based on “Like New” condition, 90-day minimum Seller-backed warranty , unlocked, fully functional with multi-point inspection & full data purge performed. The device looks new at first glance, upon close examination, it is possible to find some minor signs of wear.

System Information

• Chipset: Integrated in the processor
• DRAM bus width: 64-bit
• FLASH EPROM: 32 MB
• PCIe bus: Up to Gen3
• External bus frequency: Up to 8 GT/s

Processor Specifications

Memory Specifications

• Minimum memory: 4 GB
• Maximum memory: 32 GB
• Slots: 2 x SoDIMM slots
• Speed: 2666 MHz Non-ECC SDRAM (operates at 2400 MHz with Intel 8th Gen processors)
• Configurations:
  • 4 GB (1 x 4 GB)
  • 8 GB (1 x 8 GB or 2 x 4 GB)
  • 16 GB (1 x 16 GB or 2 x 8 GB)
  • 32 GB (2 x 16 GB)

Storage Specifications

• Configurations:
  • M.2 2230/2280 SSD (up to 512 GB/1 TB)
  • 2.5 inch SATA HDD (up to 1 TB, 5400 RPM or 7200 RPM)

System Board Connectors

• M.2 Connectors:
  • 1 x M.2 2230 Key-E
  • 1 x M.2 2280 Key-E
  • 1 x M.2 3042 Key-B

Media Card Reader

• Type: MicroSD Card Reader Slot

Audio Specifications

• Controller: Realtek ALC3204 with Waves MaxxAudio Pro
• Speakers: Two
• External Interface:
  • 7.1 channel output via HDMI
  • Digital microphone input (camera module)
  • Headset combo jack
• Microphone: Digital-array microphones

Video Card Specifications

Camera (Optional)

• Type: RGB, HD fixed focus
• Resolution:
  • Still Image: 1280 x 720
  • Video: 1280 x 720 @ 30 fps
• Sensor: CMOS
• IR Camera: Optional (87-degree viewing angle)

Communication Specifications

• Network Adapter:
  • Intel I219-V (10/100/1000 Mb/s Ethernet)
  • Intel I217-LM (for Core i3 models)
• Mobile Broadband: Intel XMM 7360 Global LTE-Advanced

Wireless Specifications

• Adapters:
  • Intel Dual Band Wireless AC 9560 (802.11ac) 2×2 + Bluetooth 5.0
  • Qualcomm QCA61x4A 802.11ac Dual Band 2×2 + Bluetooth 4.2
  • Intel Wi-Fi 6 AX200 2×2 .11ax 160 MHz + Bluetooth 5.0 (optional)

Ports and Connectors

• USB: 3 x USB 3.1 Gen 1 (Type-A), 1 x USB Type-C 3.1 Gen 2 (optional DisplayPort/Thunderbolt 3)
• Network Adapter: RJ-45 (10/100/1000 Mb/s)
• Audio: Headset combo jack
• Video: HDMI 1.4b (up to 4K @ 30 Hz)
• Other: MicroSD card reader, Micro SIM card slot

Display Specifications

Keyboard Specifications

• Keys: 102 (U.S./Canada), 103 (UK), 106 (Japan)
• Key Pitch: 18.6 mm (X), 19.05 mm (Y)
• Backlit: Optional
• Layout: QWERTY

Touchpad Specifications

• Resolution: 1221 x 661
• Dimensions: 101.7 mm x 55.2 mm
• Multi-touch: 5-finger support

Fingerprint Reader (Optional)

• Type: Capacitive sensor, located on power button or palmrest
• Resolution: 363 PPI, 508 DPI
• Sensor Area: 10 mm diameter or 12.8 x 18 mm

Operating System

• Supported OS:
  • Windows 10 Home/Professional (64-bit)
  • Ubuntu 18.04 LTS (64-bit)

Battery Specifications

• Types:
  • 3-cell lithium-ion (42 WHr, 51 WHr, or 68 WHr)
• Charging: ExpressCharge
• Life Span: 300 discharge/charge cycles (standard), 1000 cycles (LCL pack)
• Charging Time:
  • Standard charge: ~4 hours
  • Express Charge: ~2-4 hours depending on temperature

Power Adapter Specifications

• Type: E5 65 W or 90 W
• Input Voltage: 100-240 VAC
• Output Voltage: 19.5 VDC
• Temperature Range: Operating: 0°C to 40°C, Non-Operating: -40°C to 70°C

Sensor and Control Specifications

• Free Fall Sensor
• Hall Effect Sensor (Detects lid closure)

Dimensions and Weight

• Height: Front: 20.3 mm, Rear: 22 mm
• Width: 359.1 mm
• Depth: 236.25 mm
• Weight: 1.82 kg

Computer Environment

• Operating Temperature: 0°C to 35°C
• Storage Temperature: -40°C to 65°C
• Vibration: 0.26 GRMS (Operating), 1.37 GRMS (Storage)
• Shock: 105 G (Operating), 40 G (Storage)
• Altitude: -50 ft to 10,000 ft (Operating), -50 ft to 35,000 ft (Storage)
